M系列专业相机

所属分类：工业相机
浏览次数：次
发布日期：2020-10-23 12:01:57

我要询价

产品概述
性能特点
技术参数

信息

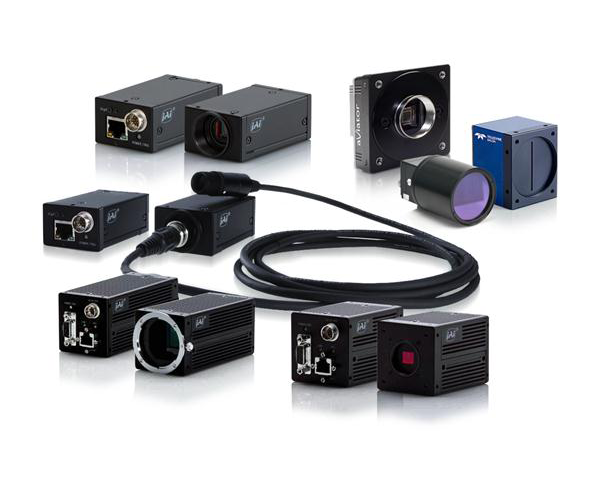

M系列专业相机支持如今复杂的高速、高质量的检查和测量的视觉要求。这些GigE视觉兼容型代表了行业的最尖端的相机技术,采用IMPACT软件和特殊的工程技术经验来为全球的客户提供支持、服务。MX系列专业相机很容易地集成加上MX系列处理器的嵌入式系统能扩展应用场景。

特点/优势

• 1K到4K灰阶扫描相机
• IP67等级相机
• 3CCD彩色相机
• 紫外线敏感相机
• 远程头相机
• 8和16百万像素相机

应用

• Web检验
• 应用在严酷的环境下(例如:食品和饮料、制药)
• 高分辨率彩色和灰阶的应用程序
• 应用程序与设备可用于狭窄的空间

产品序列提供以下型号：

产品订货号	产品描述
601-0428	Camera, Gig-E, 1Kx1K, 100fps, Monochrome, 1/2"
601-0429	Camera, Gig-E, 1Kx1K, 100fps, Color, 1/2"
601-0430	Camera, Gig-E, 1600x1200, 50fps, Monochrome, 2/3"
601-0431	Camera, Gig-E, 1600x1200, 50fps, Color, 2/3"
601-0432	Camera, Gig-E, 1920x1080, 50fps, Monochrome, 2/3"
601-0433	Camera, Gig-E, 1920x1080, 50fps, Color, 2/3"
601-0434	Camera, Gig-E, 2330x1750, 25fps, Monochrome, 1"
601-0435	Camera, Gig-E, 2330x1750, 25fps, Color, 1"
601-0425	Camera, Gig-E, 3CCD Color, 1620 x 1236, 1/1.8" CCD, 15FPS
601-0449	Camera, Gig-E, 3CCD Color, 1392 x 1040, 1/2" CCD, 20FPS
601-0415	Camera, Gig-E, UV Sensitive, 1380 x 1040, 16FPS, Grayscale, 1/2" CCD
601-0414	Camera, Gig-E, Remote Head, 656 x 494, 120 FPS, Grayscale, 1/3" CCD
601-0437	Camera, Gig-E, IP67, 640x480, 124fps, Monochrome, 1/3"
601-0438	Camera, Gig-E, IP67, 640x480, 125fps, Monochrome, 1/2"
601-0439	Camera, Gig-E, IP67, 640x480, 150fps, Monochrome, 1/4"
601-0440	Camera, Gig-E, IP67, 780x580, 86fps, Monochrome, 1/2"
601-0441	Camera, Gig-E, IP67, 1024x768, 47fps, Monochrome, 1/3"
601-0442	Camera, Gig-E, IP67, 1280x960, 30fps, Monochrome, 1/3"
601-0443	Camera, Gig-E, IP67, 1360x1024, 25fps, Monochrome, 1/2"
601-0444	Camera, Gig-E, IP67, 1360x1024, 34fps, Monochrome, 2/3"
601-0445	Camera, Gig-E, IP67, 1600x1200, 26fps, Monochrome, 1/1.8"
601-0446	Camera, Gig-E, IP67, 2448x2050, 10fps, Monochrome, 2/3"
601-0458	Camera, Gig-E, IP67, 640x480, 124fps, Color, 1/3"
601-0459	Camera, Gig-E, IP67, 640x480, 125fps, Color, 1/2"
601-0460	Camera, Gig-E, IP67, 640x480, 150fps, Color, 1/4"
601-0461	Camera, Gig-E, IP67, 780x580, 86fps, Color, 1/2"
601-0462	Camera, Gig-E, IP67, 1024x768, 47fps, Color, 1/3"
601-0463	Camera, Gig-E, IP67, 1280x960, 30fps, Color, 1/3"
601-0464	Camera, Gig-E, IP67, 1360x1024, 25fps, Color, 1/2"
601-0465	Camera, Gig-E, IP67, 1360x1024, 34fps, Color, 2/3"
601-0466	Camera, Gig-E, IP67, 1600x1200, 26fps, Color, 1/1.8"
601-0467	Camera, Gig-E, IP67, 2448x2050, 10fps, Color, 2/3"
959982002	Camera, GigE, Linescan, 1K, 36 KHz, M42x1, C, F, Greyscale, 14 um pixel
959982003	Camera, GigE, Linescan, 1K, 68 KHz, M42x1, C, F, Greyscale, 14 um pixel
959982004	Camera, GigE, Linescan, 2K, 18 KHz, M42x1, C, F, Greyscale, 14 um pixel
959982005	Camera, GigE, Linescan, 2K, 36 KHz, M42x1, C, F, Greyscale, 14 um pixel
959982001	Camera, GigE, Linescan, 4K, 18 KHz, M58x0.75, F, Greyscale, 10 um pixel

以下附件可用于简化安装和优化产品性能：

产品订货号	产品描述
661-0400	I/O Board, M2XX, M3XX, & Aviator Camera, w / isolation
606-0673-02	Cable, Camera Power and I/O, M2xx and M3xx, 12 pin, 2 Meter, Camera to Terminal Block
606-0673-03	Cable, Camera Power and I/O, M2xx and M3xx, 12 pin, 3 Meter, Camera to Terminal Block
606-0673-05	Cable, Camera Power and I/O, M2xx and M3xx, 12 pin, 5 Meter, Camera to Terminal Block
606-0673-10	Cable, Camera Power and I/O, M2xx and M3xx, 12 pin, 10 Meter, Camera to Terminal Block
661-0402	I/O Board, JAI Camera, w / isolation
601-0447	SVS-TUBE-IP67-47-50-AR : Anti-Reflective coated optical glass window
95A906123	SVS-TUBE-IP67-47-50-IRCUT : IR-Cut filter window
95A906124	SVS-TUBE-IP67-47-50-POLY : AR-coated Polycarbonate window
606-0685-0.5	Cable, Power and I/O for SVS Visteks Camera, .5 Meter
606-0685-01	Cable, Power and I/O for SVS Visteks Camera, 1 Meter
606-0685-1.5	Cable, Power and I/O for SVS Visteks Camera, 1.5 Meter
606-0685-03	Cable, Power and I/O for SVS Visteks Camera, 3 Meter
606-0685-05	Cable, Power and I/O for SVS Visteks Camera, 5 Meter
606-0686-02	Cable, Ethernet, SVS Vistek Camera, 2 meter
606-0686-05	Cable, Ethernet, SVS Vistek Camera, 5 meter
606-0686-10	Cable, Ethernet, SVS Vistek Camera, 10 meter
606-0686-15	Cable, Ethernet, SVS Vistek Camera, 15 meter
95A906062	M58 to F-Mount Adapter (4K)
95A906063	M42 to F-Mount Adapter (1 & 2K)
95A906064	M42 to C-Mount Adapter (1 & 2K)
606-0569-xx	Cable,
