线性相机

  • 所属分类:线性相机
  • 浏览次数:
  • 发布日期:2020-10-23 11:57:55
  • 产品概述
  • 性能特点
  • 技术参数

信息

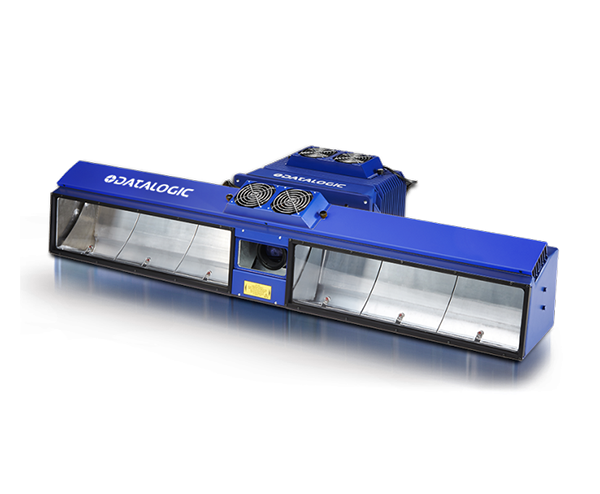

Datalogic得利捷 AV7000线性相机系统可为包括翻板、托盘和交叉带在内的多款大型输送机提供全方面高速包裹智能分拣。凭借其卓异的光学性能,AV7000相机系统成为各种配送中心、包裹设施和仓库中管理包装标识的数据阵列基石。

得益于AV7000相机配备的高灵敏度CMOS图像传感器及采用Dataloigc得利捷zhuanli照明技术,AV7000相机在物体高速运动状态下可提供高清晰度的图像,从一面到六面。图像可以被完整定义,或压缩格式导出。全新AV7000相机是在Datalogic得利捷获奖的AV6010和NVS9000线性相机基础上发展革新而来,是当今市场上的新一代自动识别解决方案。

AV7000相机拥有在高速输送机系统上识别箱子、扁平件和塑料袋的条码卓异性能,保障物料处理的最 佳效率。

特点/优势

• Next generation CMOS sensor with 40 % greater sensitivity

• Single view high quality picture for large conveyors (1400 mm/55inch)

• Patented Autofocus System offering extended DoF

• Patented PLS technology technology, reducing the footprint of thereading

station by 50%

• Patented Digital Zoom technology assuring constant DPI resolution

• Next generation decode algorithm for poor quality codes

• Multiple format image saving from full definition to highlycompressed JPG

• Browser based interface compatible with any kind of OS and HWplatform

including PC and Tablet

• Redundant architecture with no single point of failure

• Software tools for image saving and data intelligence

• Linux operative system

应用

• Parcel sorting

• Dimension Weigh Scan System

OCR and Videocoding

• Extended ID and image saving

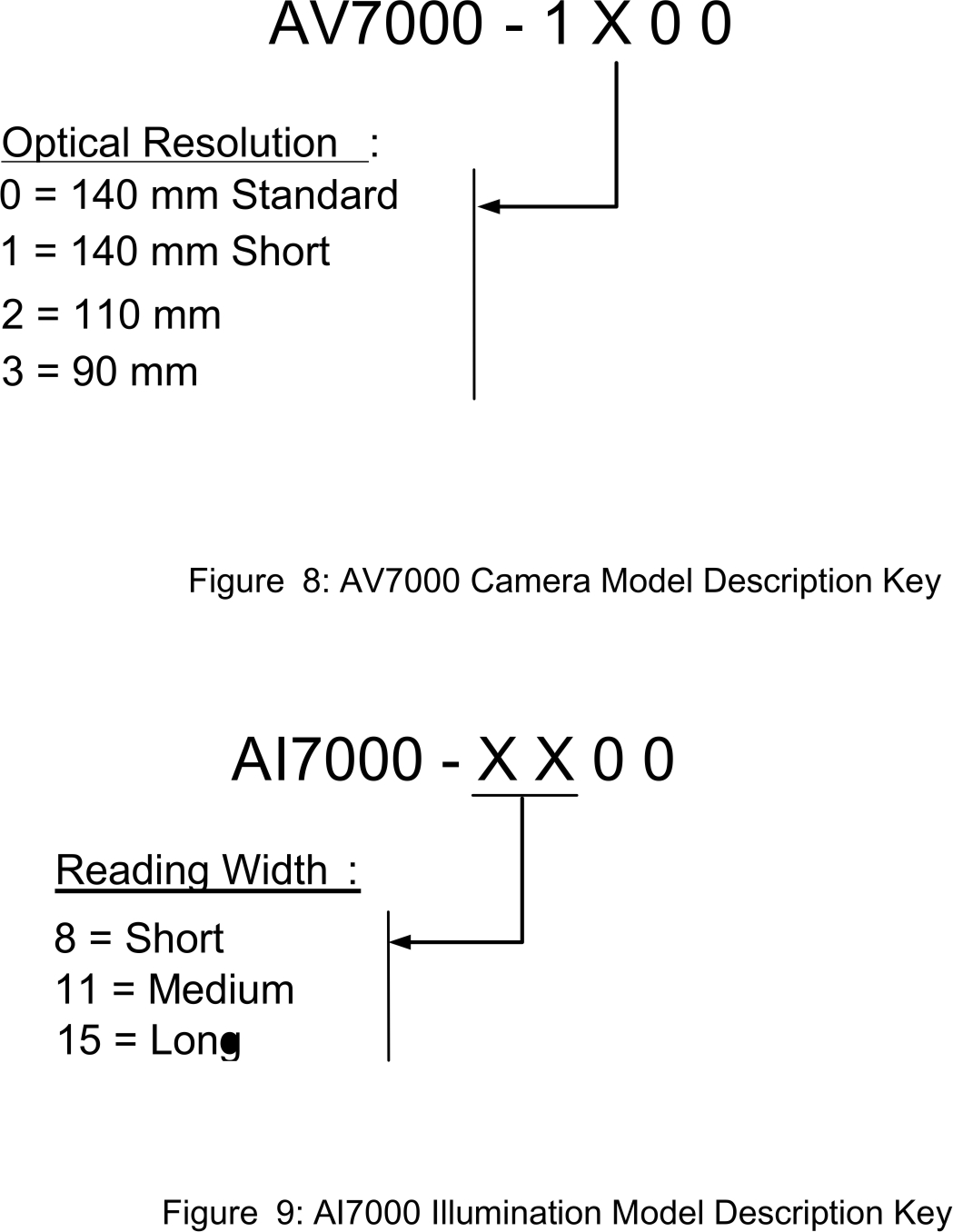

型号描述:


 线性相机


产品序列提供以下型号

产品订货号

产品描述

AV7000 Reader

934001000

AV7000-1000 140mm f/5.6 STD

934001010

AV7000-1100 140mm f/5.6 SHORT RANGE

934001020

AV7000-1200 110mm f/8.0

934001030

AV7000-1300 90mm f/8

AI7000 Illumination

934001100

AI7000-800 SHORT LIGHTING SYS

934001110

AI7000-1100 MEDIUM LIGHTING SYS

934001120

AI7000-1500 LONG LIGHTING SYS

934001200

AI7000-800W SHORT WHITE LIGHTING SYS

934001210

AI7000-1100W MEDIUM WHITE LIGHTING SYS

934001220

AI7000-1500W LONG WHITE LIGHTING SYS
